Dimensions

W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

7.5 kg

Motherboard Support

Mini-ITX, MicroATX, ATX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header

Filters

All Air Intakes

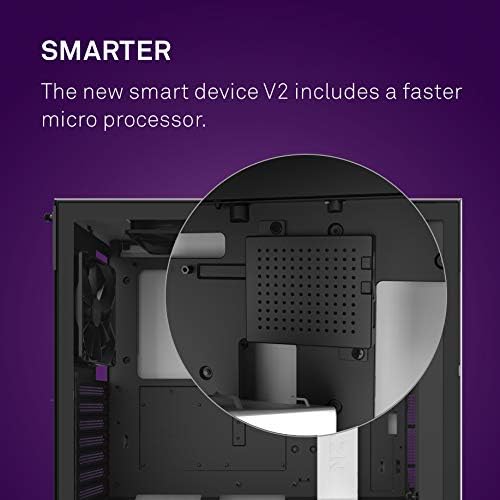

Smart Device V2

3x Fan channels with Max 10W per channel output*
2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans
Built-in noise detection module
*Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.

RGB LED Lighting

2x Integrated Aer RGB 2 140mm Fans
1x Integrated addressable LED Strip

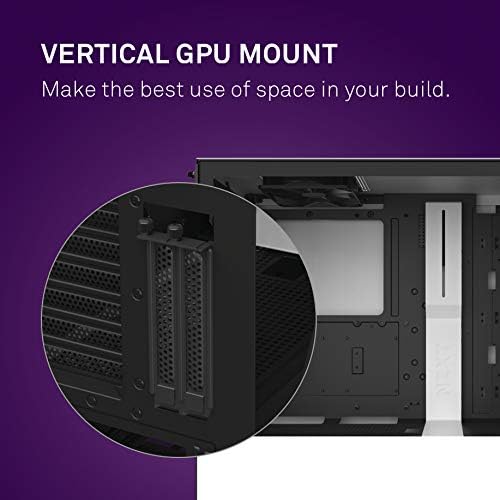

Vertical GPU Mount

2 Slots

Drive Bays

2.5": 2+1
3.5": 2+1

Expansion Slots

7

Radiator Support

Front: 2x 140 or 2x 120mm with Pull
*Note: Need to remove RGB fans if you plan to mount the radiator to the front
Rear: 1x 120mm

Fan Support

Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included)
Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included)
Rear: 1x 120mm (1x AER F120 Case Version Included)

Fan Specs

Aer RGB 2 (140mm)
Speed: 500-1,500 RPM
Airflow: 30.39 - 91.19 CFM
Noise: 22 - 33 dBA
Air Pressure: 0.17 – 1.52mm-H2O
Bearing: Fluid Dynamic Bearing
Fan Connector 4-Pin PWM

Clearance

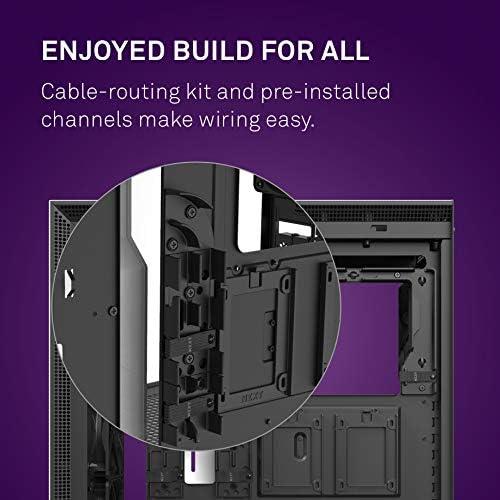

Cable Management: 19-23mm
GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Compatibility

NVIDIA GeForce RTX 30 series case compatibility chart

Warranty

2 Years

Model Number

CA-H510E-W1

EAN

5060301695294

UPC

815671015112
