Form factor

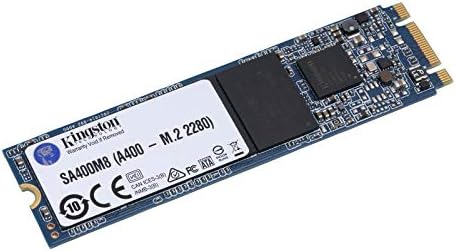

2.5" & M.2 2280

Interface

SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacities²

120GB, 240GB, 480GB, 960GB, 1.92TB

NAND

3D

Baseline Performance¹

Data Transfer (ATTO)

120GB — up to 500MB/s Read and 320MB/s Write
240GB — up to 500MB/s Read and 350MB/s Write
480GB — up to 500MB/s Read and 450MB/s Write
960GB — up to 500MB/s Read and 450MB/s Write
1.92TB — up to 500MB/s Read and 450MB/s Write

Power Consumption

0.195W Idle / 0.279W Avg / 0.642W (MAX) Read / 1.535W (MAX) Write

Storage temperature

-40°C~85°C

Operating temperature

0°C~70°C

Dimensions

100.0mm x 69.9mm x 7.0mm (2.5”)
80mm x 22mm x 1.35mm (M.2)

Weight

39g (120GB – 2.5”)
41g (240-480GB – 2.5”)
41.9g (960GB – 2.5”)
5.5g (120GB – M.2)
6.7g (240GB – M.2)
5.5g (480GB – M.2)

Vibration operating

2.17G Peak (7–800Hz)

Vibration non-operating

20G Peak (10–2000Hz)

Life expectancy

1 million hours MTBF

Warranty/support³

Limited 3-year warranty with free technical support

Total Bytes Written (TBW)⁴

120GB: 40TB
240GB: 80TB
480GB: 160TB
960GB: 300TB
1.92TB: 600TB
